The 445 from Catalina incorporates crisp, contemporary styling with proportions and features that make Catalinas comfortable and secure underway and on the hook.

Based on a new hull design with a long waterline and moderate beam and freeboard, the 445 has excellent performance potential. The hull form is optimized to provide the gentle, predictable motion underway, which is so appreciated in other Catalina models.

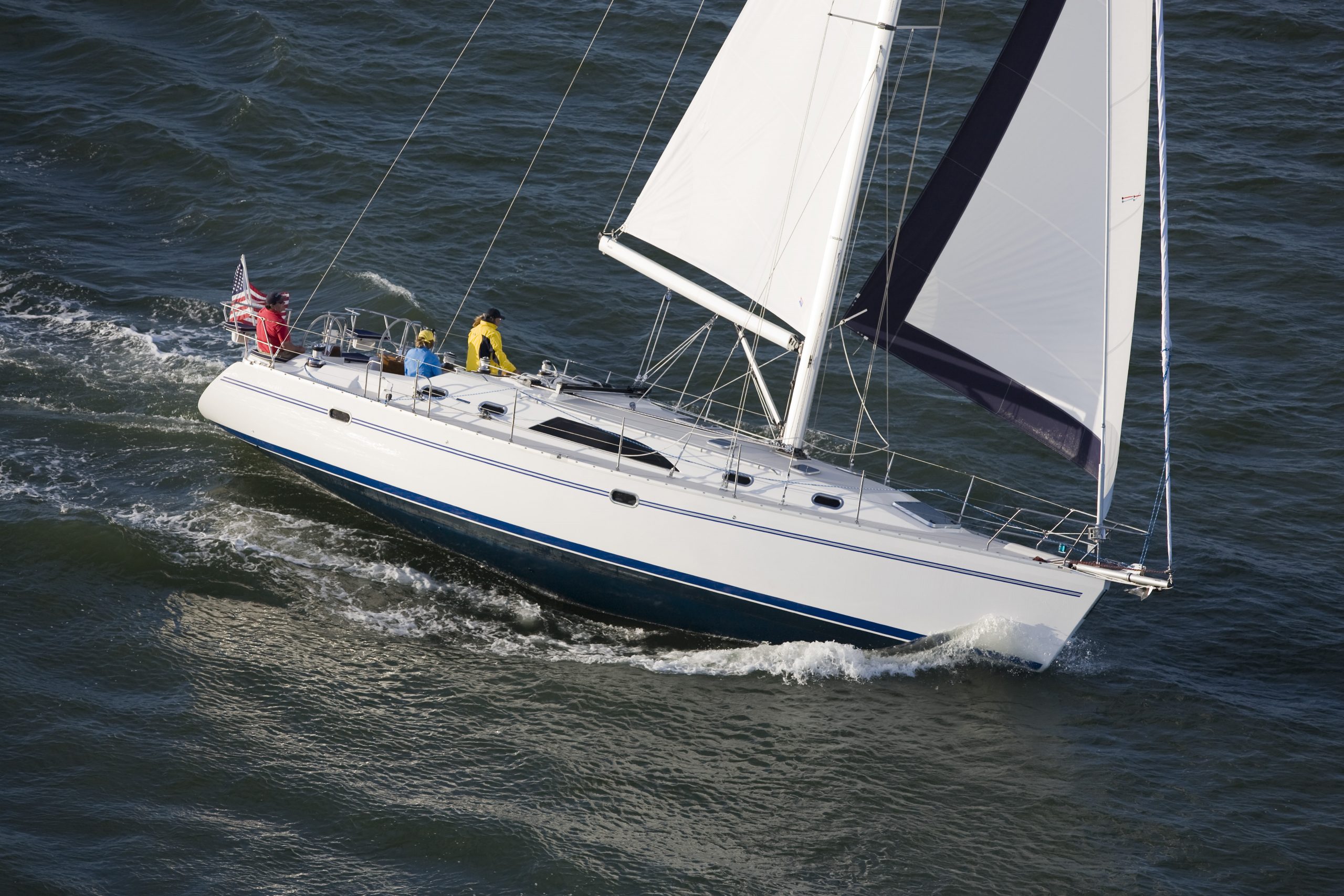

The deck is strikingly handsome with a low profile cabin structure, twin helm stations and a roomy cockpit with tall, secure, comfortable coamings and a cockpit table that seats 4-6. The deck is finished with a traditional diamond-patterned non-skid.

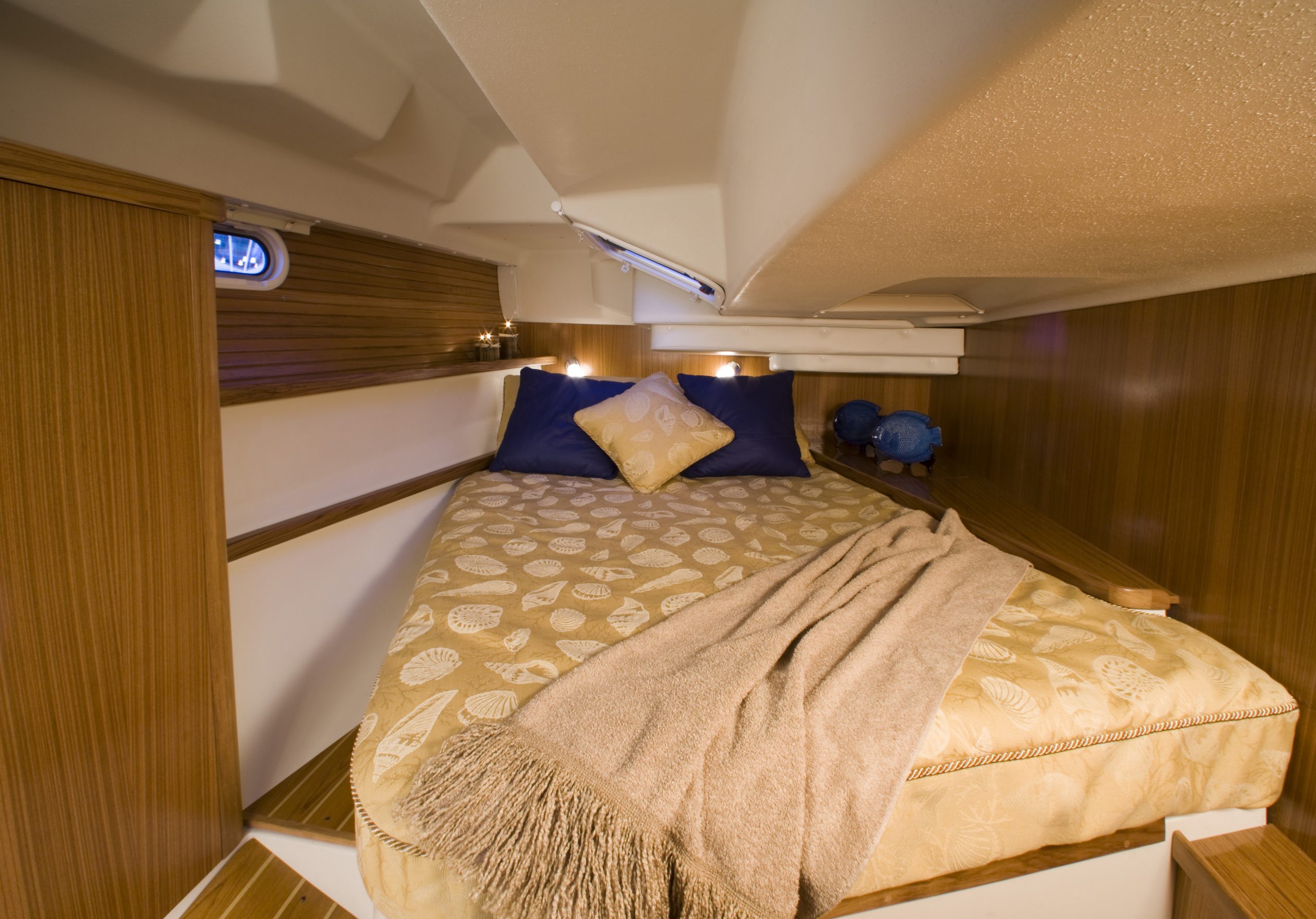

The owner’s cabin is forward for privacy and optimum ventilation. Private head access from the forward cabin along with an electric head and separate shower complete the forward cabin arrangement. The guest cabin is aft with a large comfortable double berth, angled for easy access and greater headroom.

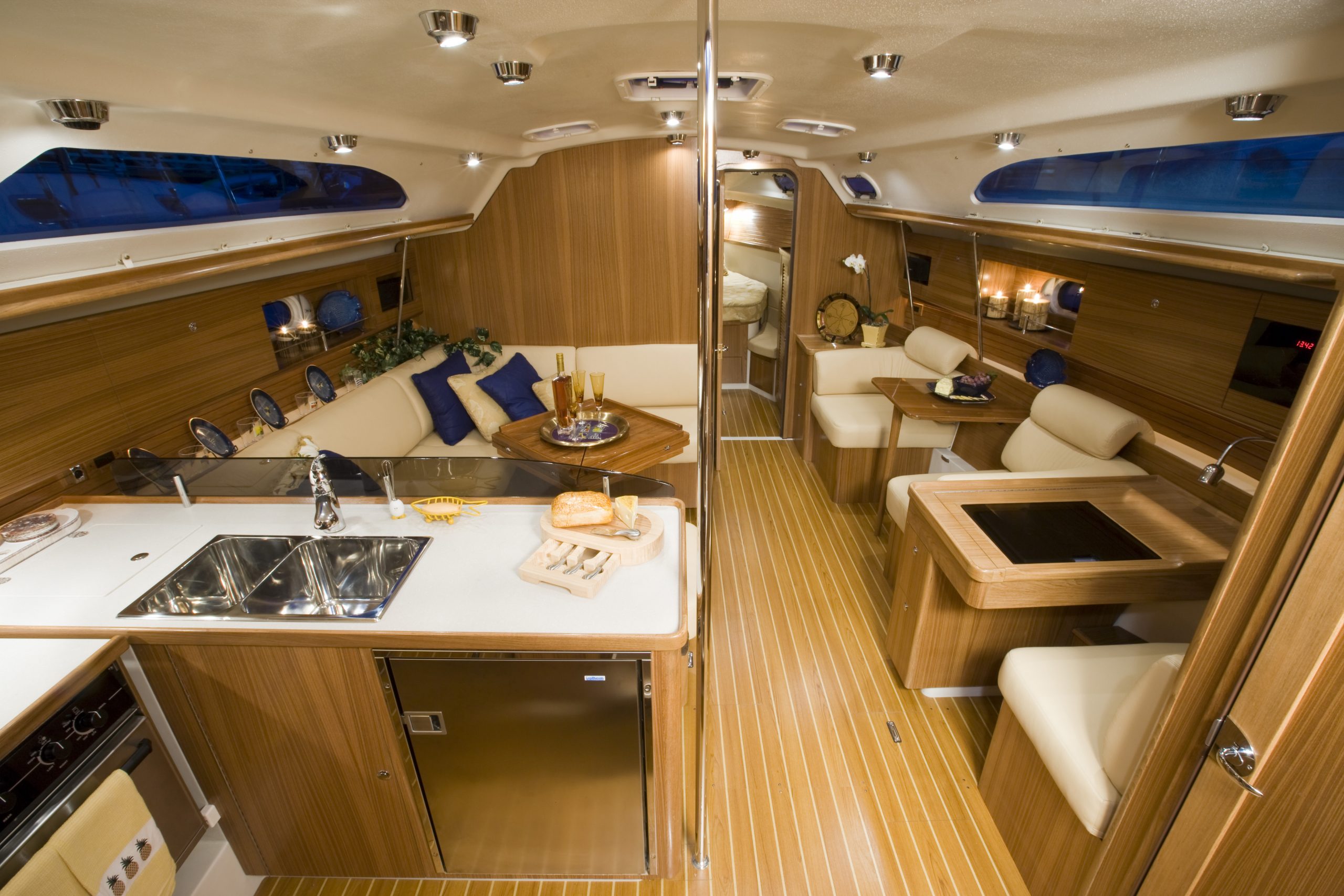

This design incorporates an innovative cabin on the port side. This cabin is a flexible space that can easily be converted to whatever your cruising style dictates at the time – sleeping quarters, storage, or a work room with a bench. The galley has the storage and features needed for extended cruising.


SPECS

GENERAL DIMENSIONS

Length Overall: 44′ 5″

Length of Hull: 43′ 3″

Length at Waterline: 38’ 4″

Beam: 13′ 7″

Distance from Waterline to Masthead: 63′ 10″

WING KEEL

Draft: 5′ 0″

Ballast: 8,200 lbs

Basic Weight: 24,500 lbs

FIN KEEL

Draft: 6′ 8″

Ballast: 7,200 lbs

Basic Weight: 23,500 lbs

RIG MEASUREMENTS

Total with 100% Foretriangle: 856ft  2

Total with Standard 135% Genoa: 1002ft  2

I= 53′ 6″

J= 15′ 8″

P= 51′ 6″

E= 17′ 0″


TANKS & CAPACITIES

Water: Forward 50 gal, Port 62 gal, Starboard 56gal

Water Heater: 11 gal

Total Water: 179 gal

Sanitary Holding Tank: Fwd 31 gal, Aft 23 gal

Total Holding: 54 gal

Fuel: 66 gal

ENGINE & CONTROLS

Yanmar 4JH57CR, 57 HP @3000RPM

Common Rail, Electronic Diesel

Twin Pedestal Steering with 32″ Stainless Wheel

Single Lever Engine Controls

3 Blade Dynajet 18 x 14

1 1/4″ S.S. Shaft

WINDLASS & CHAIN

Quick Rider with 5/16″ Chain Wheel

5/16″ High Test Gd 40 or BBB Gd 30 Chain

ANCHOR

CQR – XT 45 S.S. Plow #SP4204
