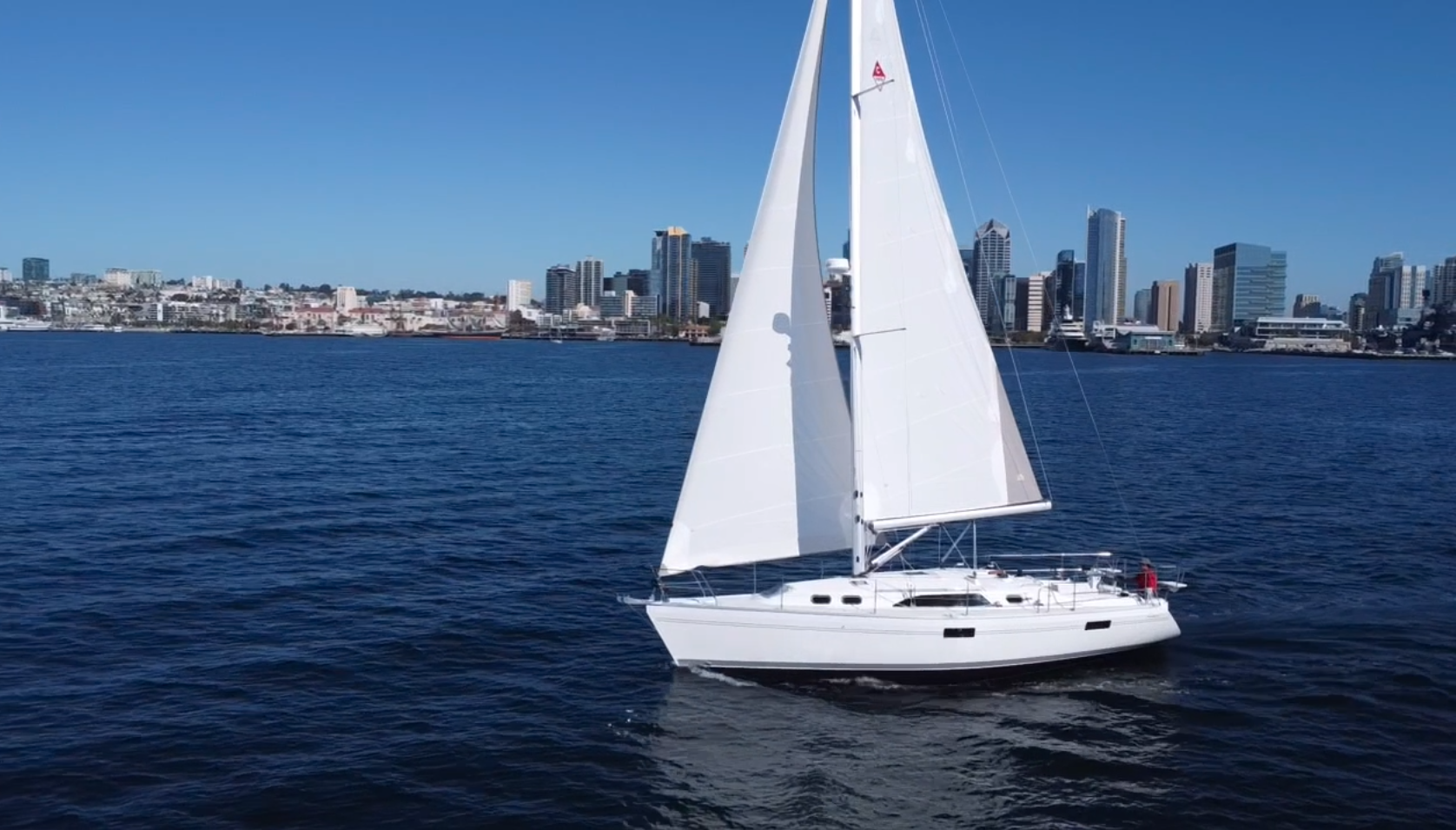

CATALINA 386

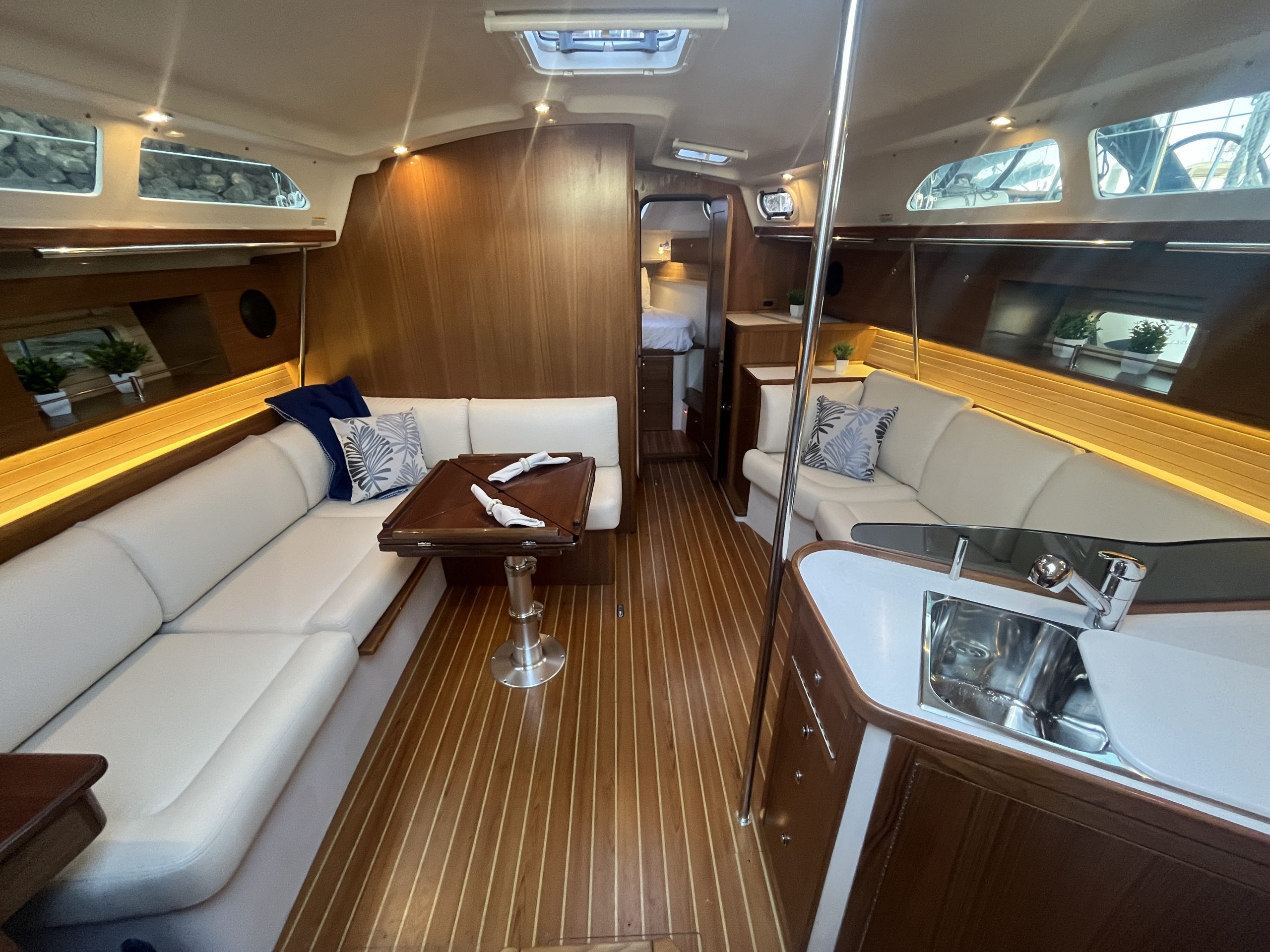

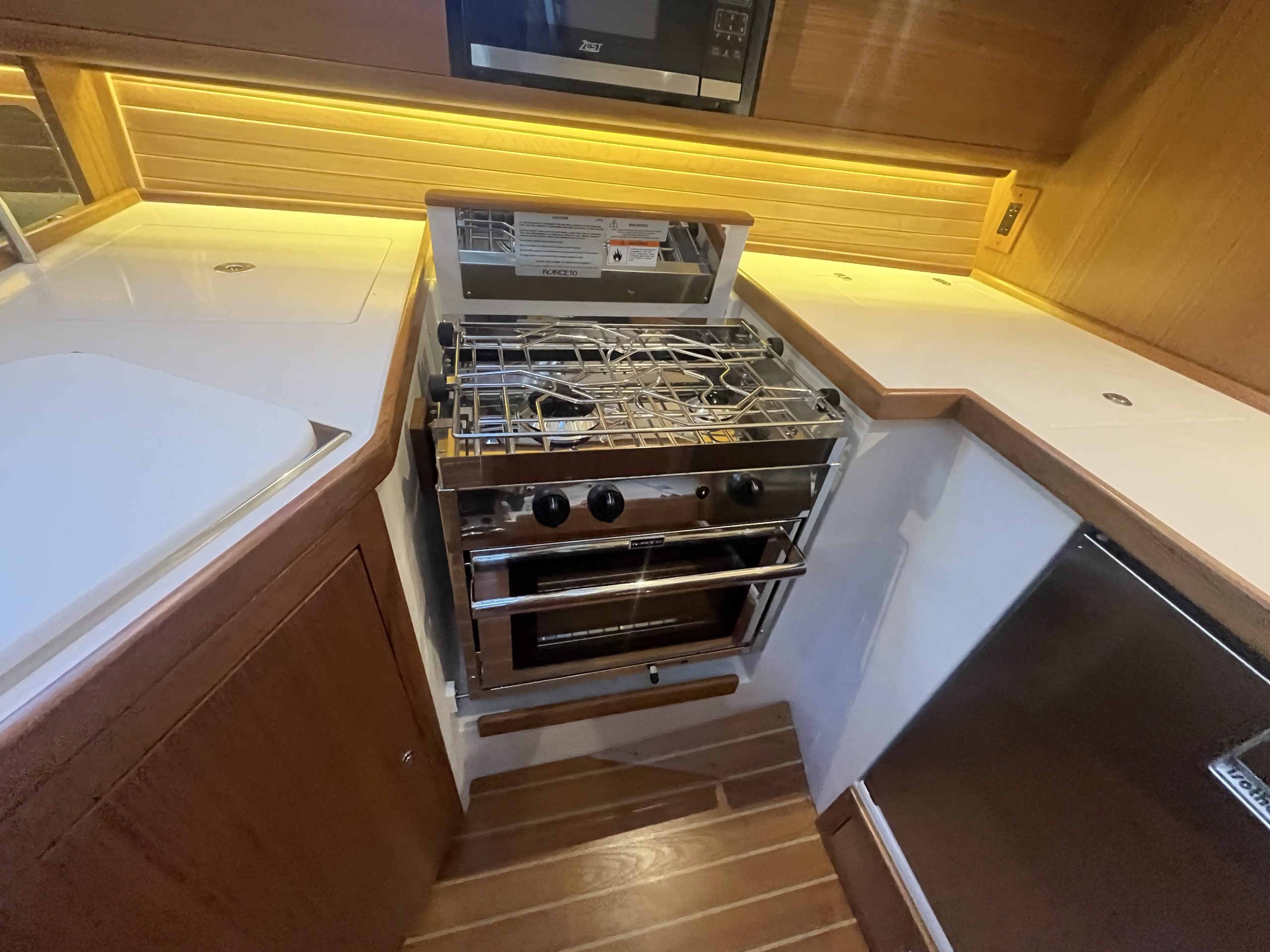

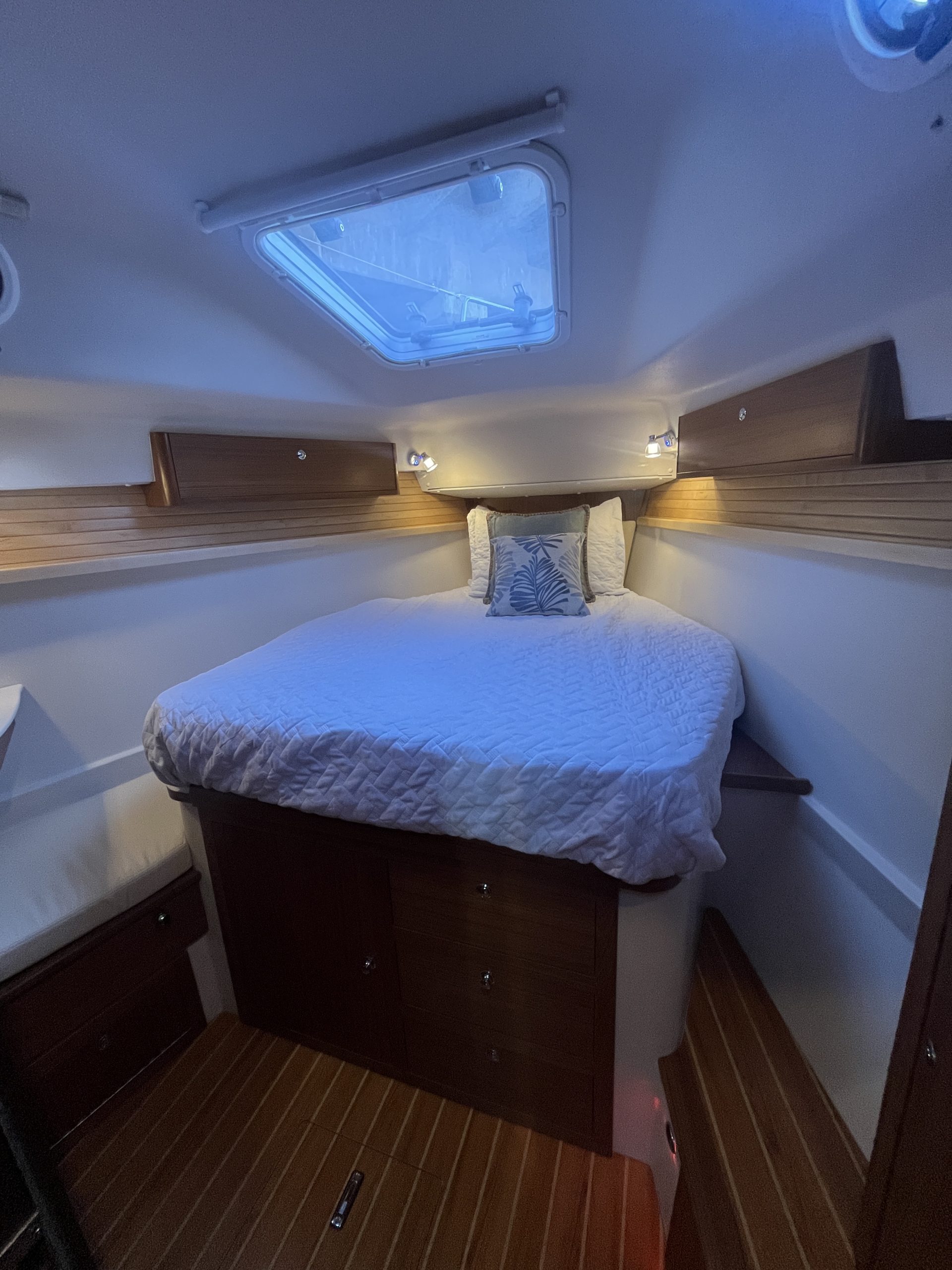

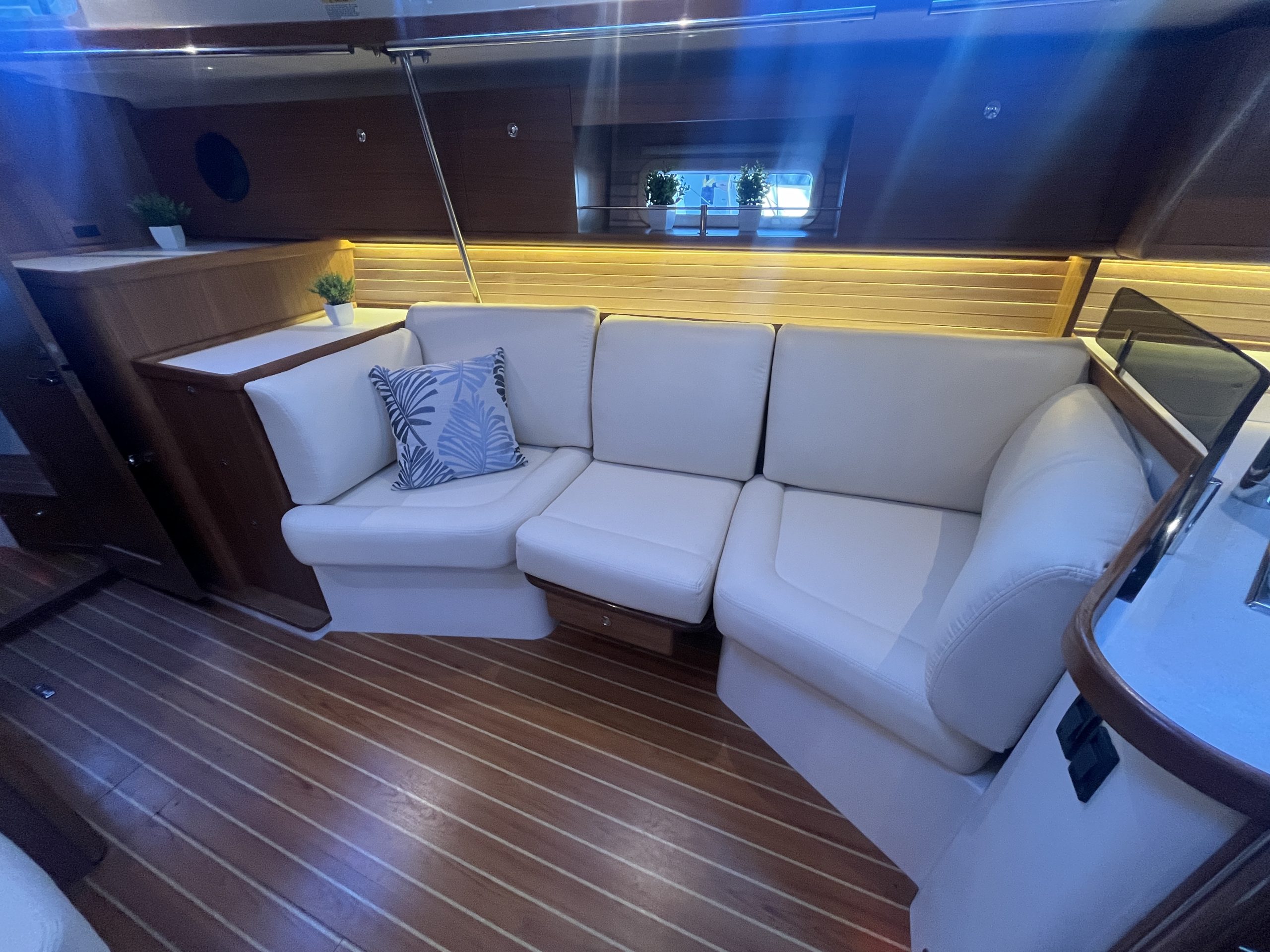

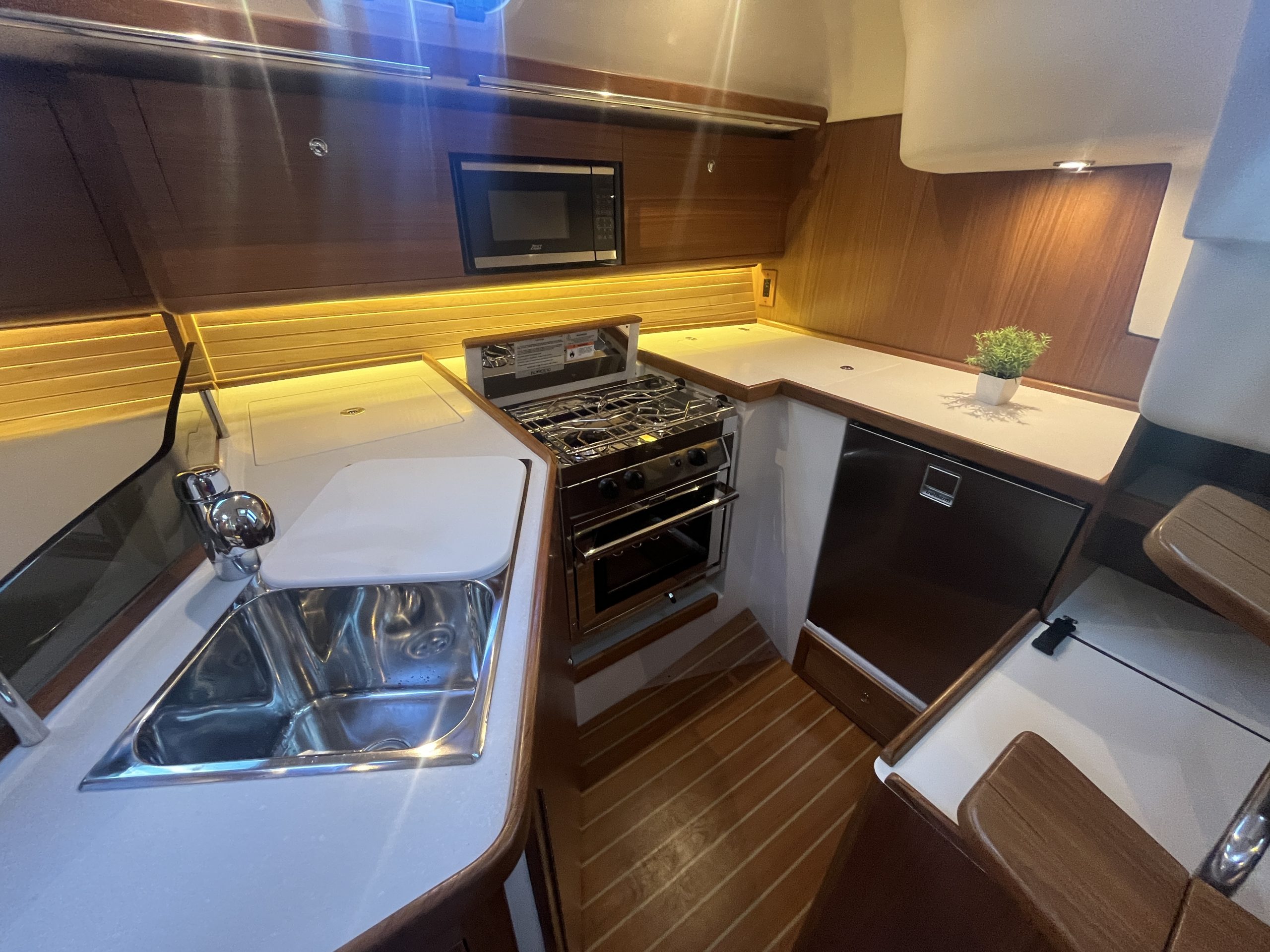

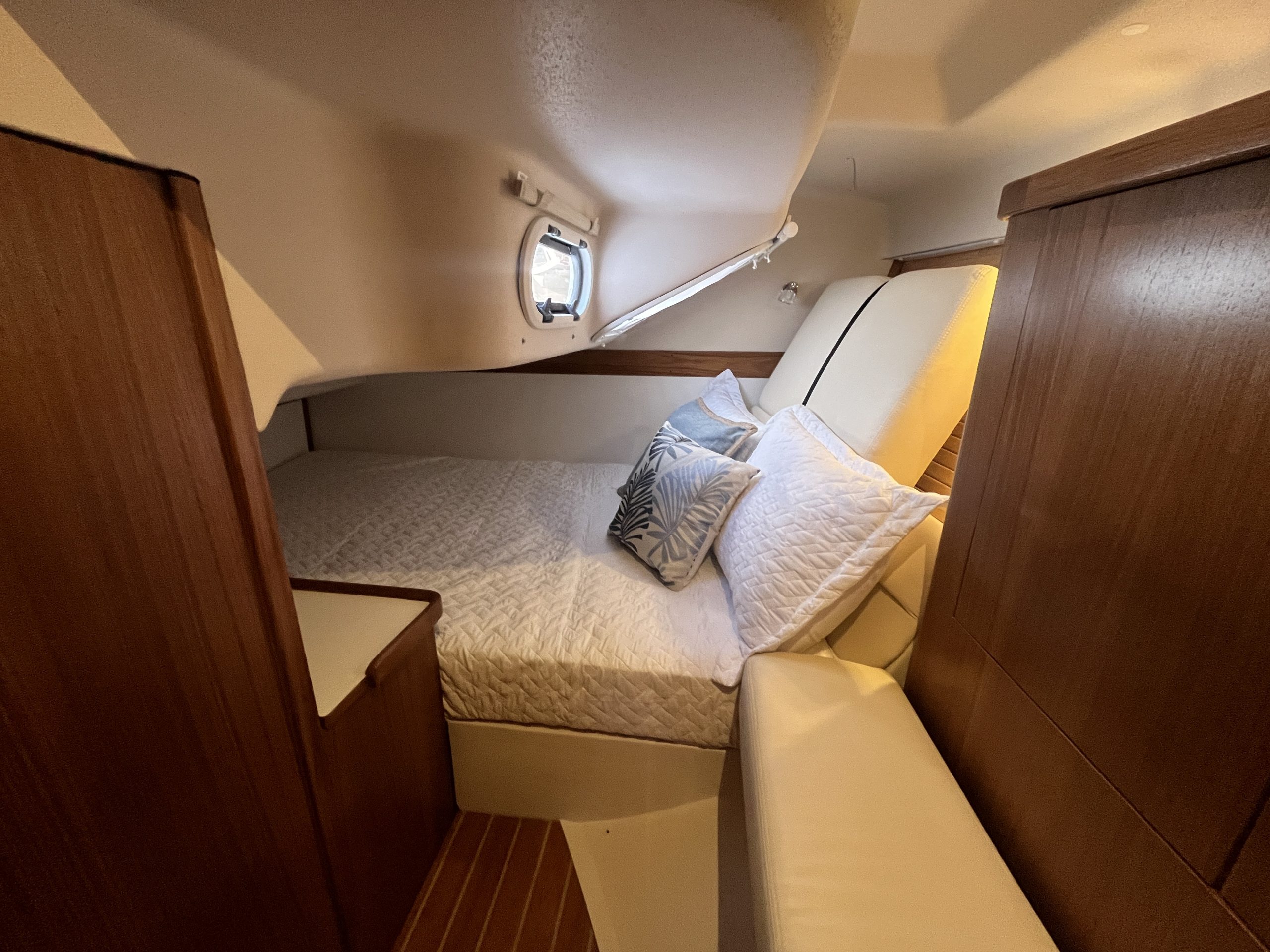

The Catalina 386 is a sleek and innovative addition to the Catalina Yachts lineup, blending performance and comfort. Designed for both coastal cruising and extended offshore adventures, the 386 boasts a spacious cockpit, a modern sail plan, and advanced deck hardware for easy handling. Below deck, it features a well-appointed interior with a roomy salon, a fully equipped galley, and ample sleeping accommodations, all crafted with Catalina’s hallmark attention to detail.

SPECS

GENERAL DIMENSIONS

Length Overall: 39′ 10″

Length of Hull: 38′ 2″

Length at Waterline: 34′ 5″

Beam: 13′ 1″

Distance from Waterline to Masthead: 56′ 0″


SHOAL DRAFT BULB KEEL

Draft: 4′ 8″

Ballast: 6,200 lbs

Displacement Half Load: 18,800 lbs


FIN KEEL

Draft: 6′ 10″

Ballast: 5,200 lbs

Displacement Half Load : 17,800 lbs


RIG MEASUREMENTS

Total with 100% Foretriangle: 703ft   2

Total with Standard 135% Genoa: 807ft   2

I= 50′ 6″

J= 14′ 2″

P= 46′ 0″

E= 15′ 0″


TANKS & CAPACITIES

Water: Forward 55 gal, Port 42 gal

Water Heater: 6 gal

Total Water: 100 gal

Waste/Black Water Holding Tank: 31 gal

Fuel: 38 gal


ENGINE & CONTROLS

Yanmar 3JH40 CR Diesel

Pedestal Steering with 40″ Stainless Wheel

Single Lever Engine Controls

3 Blade Michigan MP3 18×12

Shaft 1.25″


WINDLASS & CHAIN

Quick Rider 1000

5/16 High Test or BBB Grade 30 Chain


WINCHES

Primary #50 Lewmar Evo Self Tailing

Secodary #40 Lewmar Evo Self Tailing
