The 315 continues moving the Catalina brand to a higher level of performance, finish and engineering achievement. The 315 sails into the global marketplace with all the style and refinement of the larger Catalina 5 Series boats.

With core attributes of the award-winning 445 and 355, the 315 includes features that are not found in many of the world’s yachts, yet come standard with the Catalina 5 Series: a watertight StrikeZone™ collision bulkhead, the SecureSocket™ mast support system that affords superior load resolution and watertight integrity; the DeepDefense™ rudder system for failsafe steering, and the T-Beam MastStep™ structure that has all the benefits of a deck-stepped mast and the strength of a keel-stepped mast.

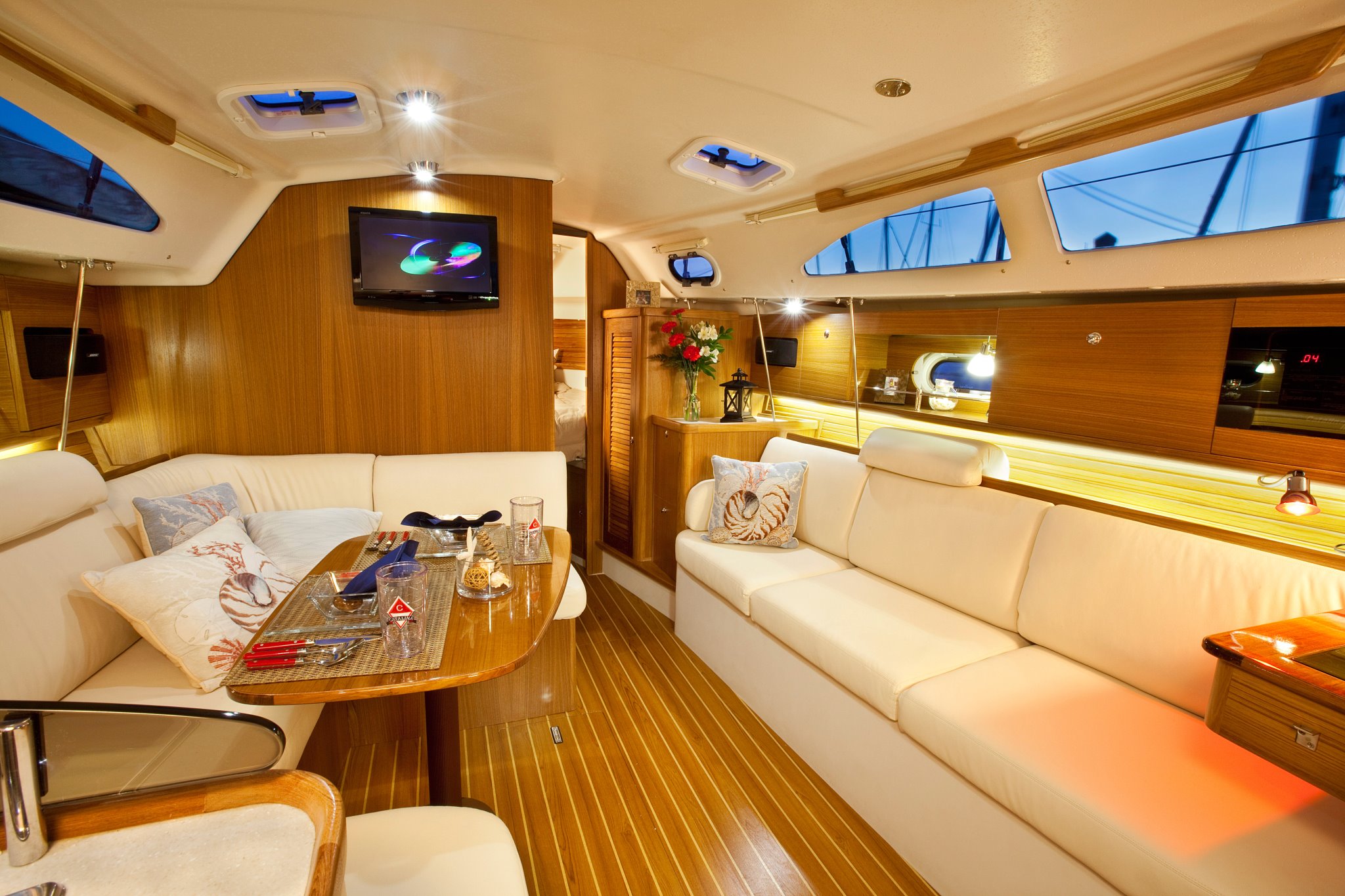

All the best elements of the 5 Series Catalinas are replicated in the 315. You’ll find a bold emphasis on strength, lead keels, sleek low profile cabin design, ergonomically correct cockpits that are optimized for efficiency, with great visibility from the helm. Plus, all the classic warmth and ambience that only a teak interior creates.


SPECS

GENERAL DIMENSIONS

Length Overall: 33′ 0″

Length of Hull: 31′ 0″

Length at Waterline: 26’6″

Beam: 11′ 7″

Distance from Waterline to Masthead: 48′ 3″

WING KEEL

Draft: 4′ 4″

Ballast: 4,400 lbs

Designed Weight: 10,600 lbs

Displacement / Length: 245

Sail Area / Displacement: 18

Ballast Ratio: 41%

FIN KEEL

Draft: 6′ 3″

Ballast: 4,000 lbs

Designed Weight: 10,200 lbs

Displacement / Length: 235

Sail Area / Displacement: 18

Ballast Ratio: 39%

RIG MEASUREMENTS

Total with 100% Foretriangle: 506ft 2

Total with Standard 135% Genoa: 589ft 2

I= 42′ 9″

J= 11′ 9″

P= 38′ 9″

E= 13′ 9″


TANKS & CAPACITIES

Water: Forward 35 gal

Water Heater: 6 gal

Total Water: 41 gal

Sanitary Holding Tank: 17 gal

Fuel: 25 gal

ENGINE & CONTROLS

Yanmar 3YM20, 21 HP Diesel

Pedestal Steering with 40″ Stainless Wheel

Single Lever Engine Controls

3 Blade Dynajet 14 x 2

WINDLASS & CHAIN

Quick Genius 600

1/4″ High Test or BBB Chain

WINCHES

Primary Lewmar #40, Chrome Bronze, Evo Self Tailing

Secondary Lewmar #30, Chrome Bronze, Evo Self Tailing

ELECTRICAL

Batteries: Qty-2 4D 150 Amp-Hrs

Shore Power: Qty-1. 30 Amp Service

Battery Charger: Qty-1 20Amp
